Electrostatic powder painting reciprocator with automatic powder coating gun, especially designed to meet the requirements of serial production in powder coating, where reliability in automated operation, easy to handle operation and security are the most projecting advantages for the user.

The type and the number of installed control units could make as your requirements.
•Increased Uniformity Advanced digital control.
•Smooth, Swift and Precise movement for speedy and uniform coating
•Reduce powder consumption.
•Quick Job Change Pre-programmable preset settings for automatic selection of stroke and speed.
•User-friendly touch screen control to control speed and stroke length.
•Adjustable counterbalance weights allow perfectly balanced gun movement.

Technical Data
Power supply AC 220V/110V 50Hz-60Hz
Power motor 0.75KW
Sweep speed 0-50m/min
Acceleration 1m/Second
Environmental 0-50 degree
Star signal model digital display
Max load capacity 25kgs
Motion range 0.3-2.5m can be setting
Point delay time 0-5 sec (optional)
Maintenance free motor
Stroke 1.5m/1.8m/2m/2.5m

1. Main parts of the electrostatic powder painting reciprocator
Display Description
A1 Light NO1
A2 Light NO2
A3 Upward moving----see PIC 01
A4 Downward moving---See PIC 02
A5 Auto model
B1 Actual value
B2 Program mode
B3 Manual/auto swich key
C1 Top stroke setting
C2 Bottom stroke setting
C3 Speed setting
D1 Manual model switch
D2 Power switch OFF

First, on the “program” display ,make it “1”,then push the key ↑,and make the spray gun move to the workpiece top place ,at this time please check the data on the “m” display ,make the m data minus 80(m-80=A),make A as the upper limit value. Push the key ↓,and make the spray gun move to the workpiece bottom place ,at this time please check the data on the “m” display ,make the data plus 80(m+80=B),make B as the lower limit set value .Make the speed data(Hz) as about 10,push the key ”ON” to start the reciprocator ,push the key “OFF” to stop it .You can change the “HZ” data to find the best moving speed .In this case ,if the upper limit is not high or not low enough ,you can increase or reduce the data .Now the setting for the mode 1 is finished ,all the data will be in the mode 1 memory

Supporting equipment

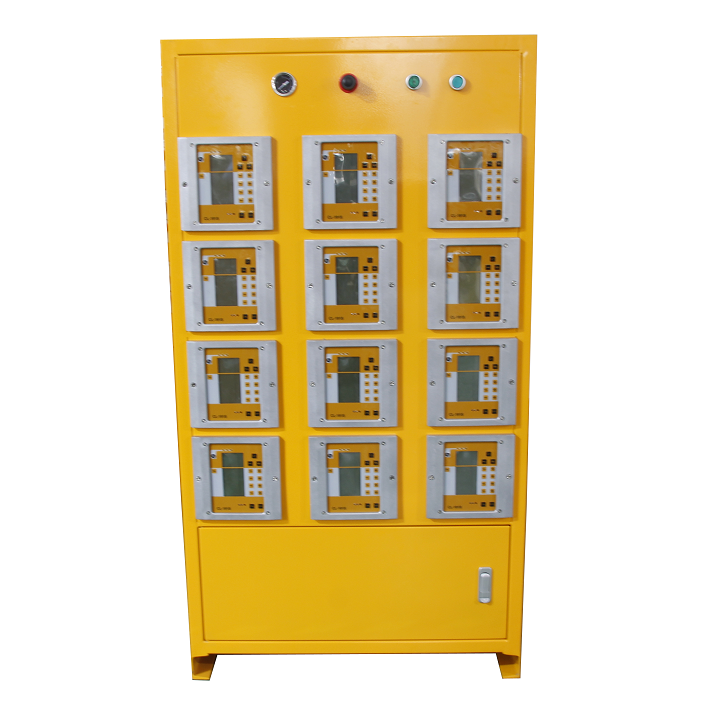

Match with automatic powder coating gun and control cabinet.
